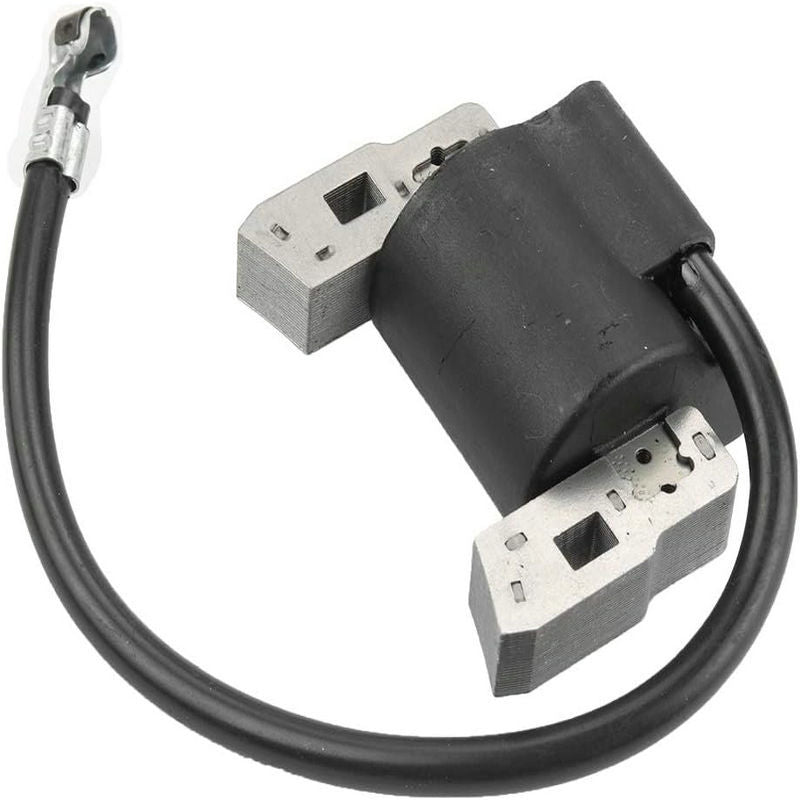

Ignition Coil 397358 395491 697037 for Briggs & Stratton 5HP Engines

Replacement electronic ignition coil / armature magneto for select Briggs & Stratton 5 HP horizontal and vertical shaft engines used on Craftsman, Toro, Cub Cadet, John Deere, MTD, Troy-Bilt, Murray, Snapper, Simplicity and other compatible outdoor power equipment.

Reference Part Numbers

• Briggs & Stratton 397358

• Briggs & Stratton 395491

• Briggs & Stratton 395490

• Briggs & Stratton 298316

• Briggs & Stratton 697037

• Briggs & Stratton 555075

• Briggs & Stratton 555164

• John Deere PT10998

• MTD BS-397358

• MTD BS-298316

• MTD BS-395490

• MTD BS-395491

• MTD BS-697037

• Oregon 33-340

• Oregon 33340

• Stens 440-401

• Stens 440401

Fits Select Briggs & Stratton 5 HP Engines

• 100 Series: 100200, 100201, 100202, 100212, 100231, 100232, 100251, 100252, 100292, 100900, 100902, 100992

• 130 Series: 130200, 130201, 130202, 130203, 130205, 130206, 130207, 130212, 130217, 130231, 130232, 130233, 130235, 130236, 130237, 130251, 130252, 130253, 130292, 130293, 130296, 130297, 130412, 130432, 130700, 130702, 130732, 130782, 130900, 130902, 130903, 130905, 130907, 130982, 130992

• 131 Series: 131200, 131212, 131231, 131232, 131237, 131251, 131252, 131292, 131400, 131431, 131432, 131436, 131437, 131451, 131452, 131492, 131702, 131707, 131782, 131922

• 132 Series: 132200, 132212, 132213, 132231, 132232, 132235, 132237, 132251, 132252, 132292, 132297, 132400, 132412, 132431, 132432, 132436, 132437, 132452, 132492, 132922, 132925, 132927, 132982, 132992

• 133 Series: 133200, 133202, 133212, 133217, 133232, 133237, 133252, 133292, 133400, 133402, 133412, 133432, 133437, 133452, 133492, 133700, 133702

• 134–137 Series: 134202, 134402, 135200, 135202, 135207, 135212, 135217, 135232, 135237, 135252, 135292, 135297, 135432, 135700, 135702, 136202, 136212, 136217, 136232, 137202, 137212

Fits Select Craftsman Equipment

• Craftsman 580.326970 – 2,400 Watt Portable Generator

• Craftsman 580.326971 – 2,400 Watt Portable Generator

• Craftsman 580.327150 – 2,400 Watt Portable Generator

• Craftsman 580.751500 – 1,800 PSI Pressure Washer

• Craftsman 580.751510 – 1,800 PSI Pressure Washer

• Craftsman 917.295852 – Rear-Tine Tiller

• Craftsman 521.244913 – Lawn Vacuum

• Craftsman 521.244950 – Lawn Vacuum

Confirmed Craftsman / Briggs Engine Applications

• Craftsman 580.326971 – Briggs & Stratton 130212-5246-01

• Craftsman 580.751500 – Briggs & Stratton 133212-0159-01

Fits Select Toro Equipment

• Toro 03102

• Toro 03104

• Toro 03108

• Toro 03112

• Toro 03113

• Select Toro equipment equipped with compatible Briggs & Stratton 5 HP engines

Fits Select Cub Cadet Equipment

• Cub Cadet 0340006U

• Cub Cadet 0340024U

• Cub Cadet 0340028U

• Select Cub Cadet equipment equipped with compatible Briggs & Stratton engines

Fits Select John Deere Equipment

• Select John Deere equipment originally using John Deere PT10998 ignition armature

• John Deere PT10998 cross-references to Briggs & Stratton 397358 / 395491 / 395490 / 298316 / 697037

Fits Select MTD Equipment

• Select MTD equipment using MTD BS-397358

• Select MTD equipment using BS-298316

• Select MTD equipment using BS-395490 / BS-395491

• Select MTD equipment using BS-697037

• Select MTD lawn mowers, tillers and other equipment equipped with compatible Briggs & Stratton 5 HP engines

Fits Select Troy-Bilt Equipment

• Select Troy-Bilt equipment using BS-397358 armature magneto

• Select Troy-Bilt equipment equipped with compatible Briggs & Stratton 5 HP engines

• Troy-Bilt identifies BS-397358 as a Briggs & Stratton engine ignition armature

Fits Select Murray Equipment

• Select Murray equipment using Briggs & Stratton / Murray 397358

• Select Murray equipment equipped with compatible Briggs & Stratton 5 HP engines

Fits Select Snapper Equipment

• Select Snapper equipment using Briggs & Stratton / Snapper 397358

• Select Snapper equipment equipped with compatible Briggs & Stratton 5 HP engines

Fits Select Simplicity Equipment

• Select Simplicity lawn mowers using Briggs & Stratton 397358

• Select Simplicity snow blowers using Briggs & Stratton 397358

• Select Simplicity outdoor power equipment equipped with compatible Briggs & Stratton 5 HP engines

Fits Select AYP Equipment

• AYP / Electrolux 3209 B49 Tiller

• AYP / Electrolux 3352 A89 Tiller

• AYP / Electrolux 3352 B89 Tiller

• Select AYP-built equipment equipped with compatible Briggs & Stratton 5 HP engines

Fits Select Applications

• Walk-behind lawn mowers

• Riding and reel lawn mowers

• Garden tillers

• Rear-tine tillers

• Snow blowers

• Generators

• Pressure washers

• Chippers and shredders

• Lawn and leaf vacuums

• Other outdoor power equipment powered by compatible Briggs & Stratton 5 HP engines

Specifications

• Type: Electronic Ignition Coil / Armature Magneto

• Ignition Type: Solid-State Electronic

• Engine Application: Select Briggs & Stratton 5 HP engines

• Engine Configuration: Horizontal and Vertical Shaft

• Mounting Hole Spacing: Approx. 2-5/16" (59 mm) center-to-center

Package Includes

• 1 × replacement ignition coil / armature magneto

Designed to provide spark for compatible Briggs & Stratton 5 HP engines. This electronic ignition armature can also replace the ignition armature on select older engines originally equipped with breaker-point ignition systems.

This is an aftermarket replacement part.

Important Fitment Information

This ignition coil does not fit every Briggs & Stratton 5 HP engine. Ignition armature requirements can vary by complete engine Model, Type, Code and production date, including engines within the same horsepower or engine family.

Do not determine compatibility by 5 HP rating alone.

Please verify your original ignition armature part number and complete Briggs & Stratton engine Model, Type and Code before ordering.
