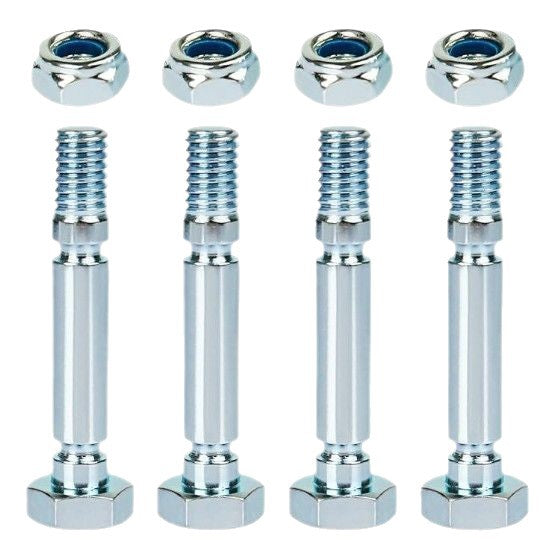

4-Pack Shear Pin & Nut Set for PowerSmart 303160355 Snow Blowers

4-pack replacement auger shear pin and lock nut set for select PowerSmart two-stage snow blowers originally using PowerSmart 303160355 / 303160355P shear pins and 303030032 lock nuts.

Reference Part Numbers

PowerSmart Shear Pin: 303160355, 303160355P

PowerSmart Lock Nut: 303030032

Fits Select PowerSmart Snow Blower Models

• DB7651

• DB7651A

• DB7651BS

• DB7659

• DB7659A

• DB7659B

• DB7659H

• DB7622E

• DB7622H

• DB7624E

• DB7279

• DBSM24E

Also fits select additional PowerSmart two-stage snow blowers originally using 303160355 / 303160355P shear pins and 303030032 lock nuts with the matching auger shear pin configuration.

Specifications

• Product Type: Auger Shear Pin & Lock Nut Set
• PowerSmart Shear Pin: 303160355, 303160355P
• PowerSmart Lock Nut: 303030032
• Thread Diameter: M6
• Bolt Length: Approx. 1-1/2 in. / 38 mm
• Application: Snow Blower Auger Assembly
• Replacement Type: Aftermarket
• Quantity: 4 Shear Pins + 4 Lock Nuts

Shear pins are designed to break under excessive auger load to help protect the auger gearbox, auger shaft and drive components from damage.

Important Fitment Information

PowerSmart snow blowers may use different auger shear pins depending on the complete equipment model, production year and auger configuration.

This shear pin and lock nut set is intended only for select applications originally using PowerSmart 303160355 / 303160355P shear pins and 303030032 lock nuts with the matching auger shear pin configuration.

Snow blower width, DB-series designation or physical fastener appearance alone does not confirm compatibility. Similar-looking shear pins may have different dimensions, threads, grades or shear characteristics and may not be interchangeable.

Please verify your original shear pin part number and complete PowerSmart snow blower model before ordering. Compare the M6 thread, approximate 1-1/2 in. / 38 mm length and lock nut configuration with your original parts where possible.

Do not substitute ordinary bolts for the specified shear pins. Shear pins are designed to break under excessive auger load to help protect the auger gearbox, shaft and drive components.
